Soffit Mount Air Handler – CP Series

< View More adp air handlers

Overview

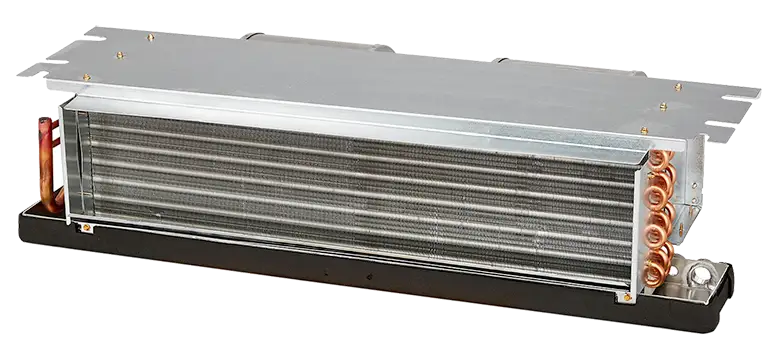

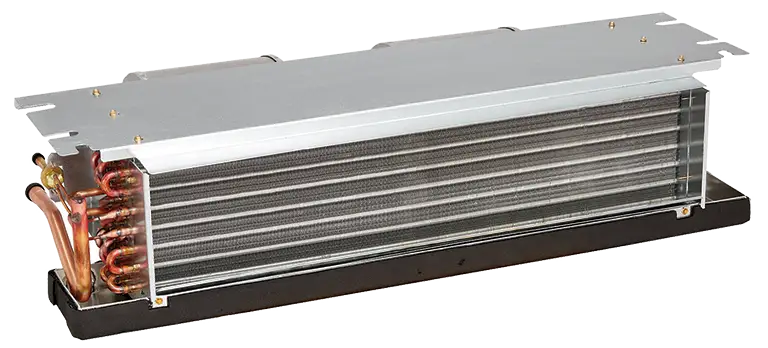

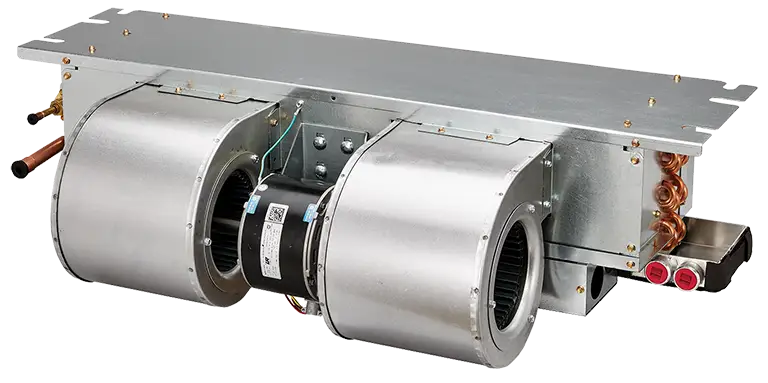

The Soffit Mount - CP Series is a ceiling/soffit-mount air handler purpose-designed for multi-family residential applications and the replacement market. It fits where standard units can't — matching industry-standard footprints and dropping in without requiring a new framing or modified opening. Compatible with most OEM air conditioning and heat pump systems, it's the practical choice where fit, speed, and flexibility matter.

Designed for seamless installation in multi-family applications

ADP‘s Compact Wall Mount and Soffit Mount Air Handler Series

See Product Literature

Key Features

Motor options: PSC or ECM constant torque
Airflow: horizontal only
Voltage: 208/240V, 60 Hz, single-phase
Coil options: copper or aluminum slab with high-efficiency lanced fin design
Metering: Piston or TXV (bleed/non-bleed, heat pump or A/C); screw-on TXVs available as field-install kits
Available in cased and uncased configurations; field-install case kits available as an accessory
Left- and right-side condensate drain connections for flexible installation
Flexible heating options: factory-installed or field-installed electric heat strips

Benefits

Drop-in replacement: matches industry-standard footprints; no custom framing or modifications required
Broad OEM compatibility: works with all major OEM brands
FlexCoil technology: coil adaptable for multiple refrigerant types
A2L ready: available with factory-installed refrigerant detection; one sensor supports both R-454B and R-32
R-410A available for service/replacement applications
Enhanced coil leak testing: each unit is pressure tested at 500 psi underwater and verified with helium leak detection for added reliability
5-year limited warranty. Extend to 10 years with online registration (terms and conditions apply)

Specifications

Size: Available 1.5 – 2.5 tons
Motor: PSC and ECM motor
Heat: No heat or factory-installed electric heat

Applications

Multi-family residential: apartments, condos, and townhomes
Replacement and retrofit installations
Space-constrained mechanical closets and ceiling/soffit cavities
Drop ceiling and fur-down applications

Literature

CP Series Products are Most Suited in the Following Regions

Nomenclature

A1 Refrigerants Product Nomenclature

01C

Series
C =Ceiling mount (uncased)

Blower Motor Type
P =PSC
E =ECM constant Torque

Unit Size (Nominal MBTUH)
18
19
23
24
25
29
30

Slab No.
01C, 02C, 03C, 04C, etc= Copper
01A, 02A, 03A, 04A etc.= Aluminum

Metering Device
1 =Piston (R-410A)
7 =R-410A Bleed HP-A/C TXV
9 =R-410A Non-bleed HP-A/C TXV

Airflow Config.
H =Horizontal only

Line Connection
S =Stripped wire (no heat models only)
P =Pull disconnect

Heat
00 =No heat
03 =3kW (18-24)
05 =5kW (all sizes)
06 =6kW (all sizes)
08 =8kW (all sizes)
10 =10kW (24-30)

Voltage
1 =208/240 V, 60 Hz, 1ph.

Case
C =Cased
U =Uncased

Revision

A2L Refrigerants Product Nomenclature

01C

Series
C = Ceiling mount (uncased)

Blower Motor Type
P = PSC
E = ECM constant Torque

Unit Size (Nominal MBTUH)
18
19
23
24
25
29
30

Slab No.
01C, 02C, 03C, 04C, etc= Copper
01A, 02A, 03A, 04A etc.= Aluminum

Metering Device
1 =Piston (R-454B and R-32)
A =R-454B Non-bleed HP-A/C TXV
B =R-32 Non-bleed HP-A/C TXV
C =R-454B Bleed HP-A/C TXV

Airflow Config.
H =Horizontal only

Line Connection
S = Stripped wire (no heat models only)
P = Pull disconnect

Heat
00 =No heat
03 =3kW (18-24)
05 =5kW (all sizes)
06 =6kW (all sizes)
08 =8kW (all sizes)
10 =10kW (24-30)

Voltage
1 =208/240 V, 60 Hz, 1ph.

Case
C =Cased
U =Uncased

Refrigerant Detection System
R =Included (Factory Installed)
